Buff | Diamond Pro® Wall
With greater square footage per unit than the popular Diamond Pro® retaining wall is an ideal choice for large projects. Architects, engineers, and contractors choose Diamond Pro to create flexible, cost-effective solutions for a broad range of large retaining wall projects.
Features & Benefits:
- Rear-lip locator.
- Large cores for ease in handling.
- Matching corner and cap for a seamless appearance.
- Gravity walls can be built up to 4 ft high, including buried course with a 7.1° batter.
- Walls in excess of 50 ft high have been built with Diamond Pro when combined with geosynthetic reinforcement.
- Minimum outside radius, measured from the top course to the front of the units: 4 ft.
- Minimum inside radius, measured on the base course to the front of the units: 6 ft.
Shapes & Sizes

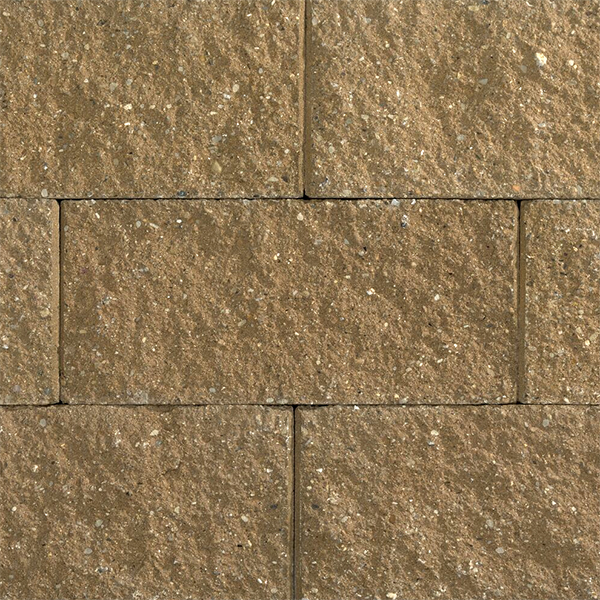

Straight Face - 8" x 18" x 12"
Corner - 8" x 18" x 9"
Universal Cap - 3" x 18/12" x 13"
Pro® Cap - 4" x 19" x 10 1/2"
